Network Alarm Monitoring System: Applications for Advanced Security
(Cloud-based Integrated Alarm and CCTV surveillance System)
Intrusion Alarm System with Video Verification
-
This advanced solution seamlessly integrates intrusion alarm system with CCTV surveillance system into a comprehensive security system.
-
Ideal for establishing centralized network alarm monitoring systems, it caters to a wide range of applications, including security companies, banks (ATMs), retail chain stores, franchise outlets, corporate offices, commercial buildings, hotels, factories, hospitals, nursing homes, residential communities, villas, outdoor computer or server rooms, and unattended stations.
Video Demo
Key Functions of the Network Alarm Monitoring System
The Athenalarm network alarm monitoring system seamlessly combines intrusion alarm system and CCTV surveillance system into a unified solution to establish a robust network security alarm system (ALARM + CCTV). This innovative platform integrates previously separate intrusion alarm systems and CCTV surveillance systems via the cloud, using TCP/IP or 4G communication. With its high-sensitivity transmission and advanced functionality, it is ideal for centralized network security monitoring.
Key Functions
1. Intruder Verification:
- Real-time video verification during alarm events.
- Automatically displays and records live video from the linked channel when an alarm is triggered.
- Through this high-quality, cloud-based system, users can instantly view live footage to assess the situation as it unfolds.
2. Video Storage:
- Alarm-related video clips are securely stored on the platform’s server.
- Users can access recorded videos anytime, offering high-quality evidence to aid in suspect apprehension and loss recovery.

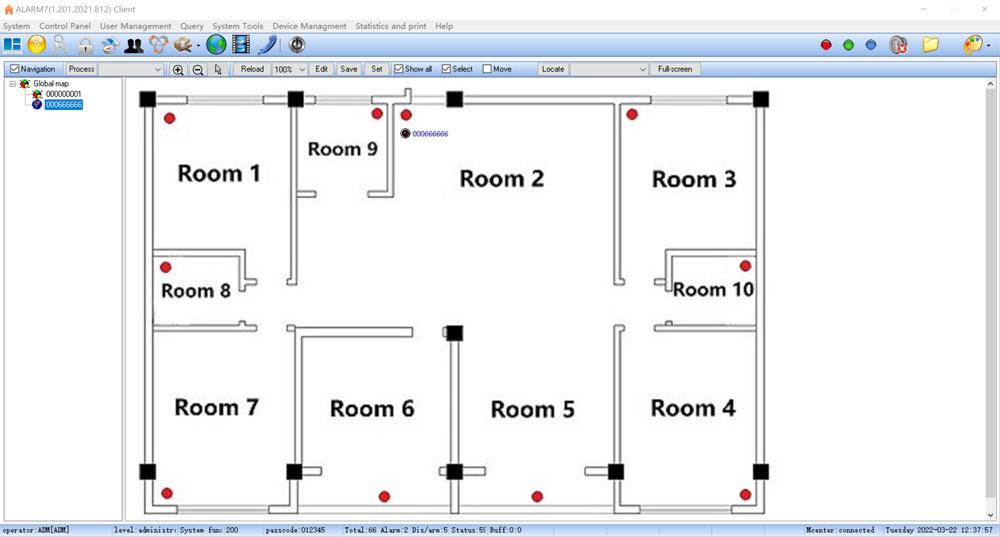

3. Interactive Map Function:
- Automatically displays the relevant map location when an alarm event occurs, streamlining response coordination.
4. Remote Control:
- Users can remotely arm, disarm, and monitor alarm control panels from the alarm monitoring center.
5. Alarm Notifications:
- All logged-in users receive instant message alerts and audible alarm sounds when the system is triggered.
6. Faster Decision-Making:
- Live video streaming enables immediate alarm verification, ensuring quick dispatch of response teams or emergency services if necessary.
7. Wide Compatibility:
- Supports Athenalarm AS-9000 series alarm control panels and various brands of surveillance equipment, including DVRs, NVRs, and IP cameras (e.g., HIKVISION, DAHUA, XM).
This cutting-edge system ensures reliability, efficiency, and seamless integration for enhanced security across diverse environments.
Working Principle of the Network Alarm Monitoring System
System Components
The Athenalarm Network Alarm Monitoring System is comprised of three key components:
1. Security Alarm Monitoring Software:
1) The AS-ALARM network alarm center management software serves as the central management system and is the core of this solution.
2) This cloud-based central alarm monitoring software is divided into two parts: the server and the client.
- Server: Must be installed on a Windows Server 2008 or Windows Server 2012 environment (users can choose to build or rent the server).
- Client: Can be installed on any personal computer running a Windows operating system, connected to the Internet or a LAN.
2. Alarm System:
Utilizes the Athenalarm AS-9000 series alarm control panels along with various detection devices, linkage devices, and other compatible hardware to ensure reliable and efficient alarm monitoring.
3. CCTV Surveillance System:
Compatible with a wide range of monitoring products supported by the security alarm monitoring software, including popular brands such as HIKVISION, DAHUA, XM, and other similar systems.
This three-part structure ensures seamless integration and functionality, providing a comprehensive and versatile solution for network alarm and security monitoring.
Structure Schematic Diagram
Working Mode
The alarm monitoring center operates in real-time, managing the status of alarm control panels, zones, and the CCTV surveillance system through the security alarm monitoring software, connected via the WAN or LAN.
1. Alarm Trigger and Transmission:
When any alarm control panel is triggered, the alarm signal is immediately transmitted to the server of the security alarm monitoring software.
2. Client Notification and Response:
The client software, connected to the server, instantly receives the alarm signal. Upon receiving the signal, it:
- Issues a message prompt and an audible alarm.
- Automatically displays the linked live video, or global map, or user-defined map on the client’s PC screen for immediate event visualization.
This efficient working mode ensures rapid detection, notification, and response, enabling effective management of alarm events and associated video monitoring.
Networking Methods
Single-Point
Multi-point
Multi-point & Multi-level
Diagram of the TCP/IP Network Alarm Monitoring System
—–Used via WAN (Internet)
This system is ideal for monitoring chain stores, franchise outlets, corporate headquarters, and similar establishments with centralized management needs.
It is also highly suitable for large-scale locations implementing network-based perimeter alarm systems, ensuring comprehensive security coverage and efficient centralized monitoring.
—–Used via internal LAN
This system is perfect for offices, large companies, and other environments where security personnel are on duty, enabling efficient local monitoring and management of alarm systems within the internal network.
Diagram of the 4G Network Alarm Monitoring System
The 4G Network Alarm Monitoring System is designed for remote monitoring and security, making it ideal for outdoor installations and locations with limited on-site supervision. These include:
- Outdoor Computer/Engine Rooms
- Unattended Stations
- Substations
- Transformer Stations
In this setup, 4G connectivity is used to transmit alarm signals to the alarm monitoring center. The system is particularly suited for areas where wired internet or LAN connections are impractical or unavailable, providing reliable, real-time alarm monitoring through mobile networks.
Application Scenarios
The Network Alarm Monitoring System is versatile and can be applied in a wide range of environments to enhance security and ensure efficient monitoring. Key application scenarios include:
1. Retail and Commercial Spaces:
- Chain Stores and Franchise Outlets: Ideal for centralized monitoring of multiple locations to ensure uniform security across all branches.
- Shopping Malls and Commercial Buildings: Provides real-time video surveillance and alarm management to prevent theft and unauthorized access.
2. Corporate and Office Buildings:
- Large Companies and Offices: Suitable for monitoring premises with security personnel on duty, offering real-time alerts, video verification, and remote access.
3. Industrial and Outdoor Environments:
- Outdoor Computer/Engine Rooms: Ensures constant surveillance and early detection of security events in remote locations.
- Unattended Stations: Ideal for monitoring unmanned sites such as utility stations, ensuring timely responses to alarms.
- Substations and Transformer Stations: Provides remote monitoring and security, helping to detect intrusions or equipment faults in critical infrastructure.
4. Residential and Community Areas:
- Gated Communities, Villas, and Residential Complexes: Monitors and secures private properties and neighborhoods, offering peace of mind to residents.
5. Government and Healthcare Facilities:
- Hospitals, Nursing Homes, and Government Buildings: Provides security solutions for sensitive areas requiring high levels of protection and surveillance.
The system’s flexibility, scalability, and real-time monitoring capabilities make it suitable for virtually any environment, offering tailored security solutions for a wide array of use cases.
Exhibition Board for Testing
Test the Athenalarm Network Alarm Monitoring System Online
The Athenalarm network alarm monitoring system is available for online testing. If you’re interested in testing the system, please contact us. We will provide you with detailed instructions on how to proceed with the test.
Feel free to reach out and experience the capabilities of our advanced network alarm monitoring system firsthand!
