Description
AS-971 digital vibration detector adopts the international advanced photoelectric vibration sensing principle, combining the vibration sensor and vibration analyzer, with the CPU processing technology, induces the degree of vibration damage through the vibration of the sound source wavelength and frequency.
It is applicable to various models of ATM automatic teller machines, vaults and different sizes of safe and other equipment to detect, effectively prevent hit, drill, pry and other destructive behavior on the equipment. It has been used for the major banks’ ATM automatic teller machines and other equipment.
Features

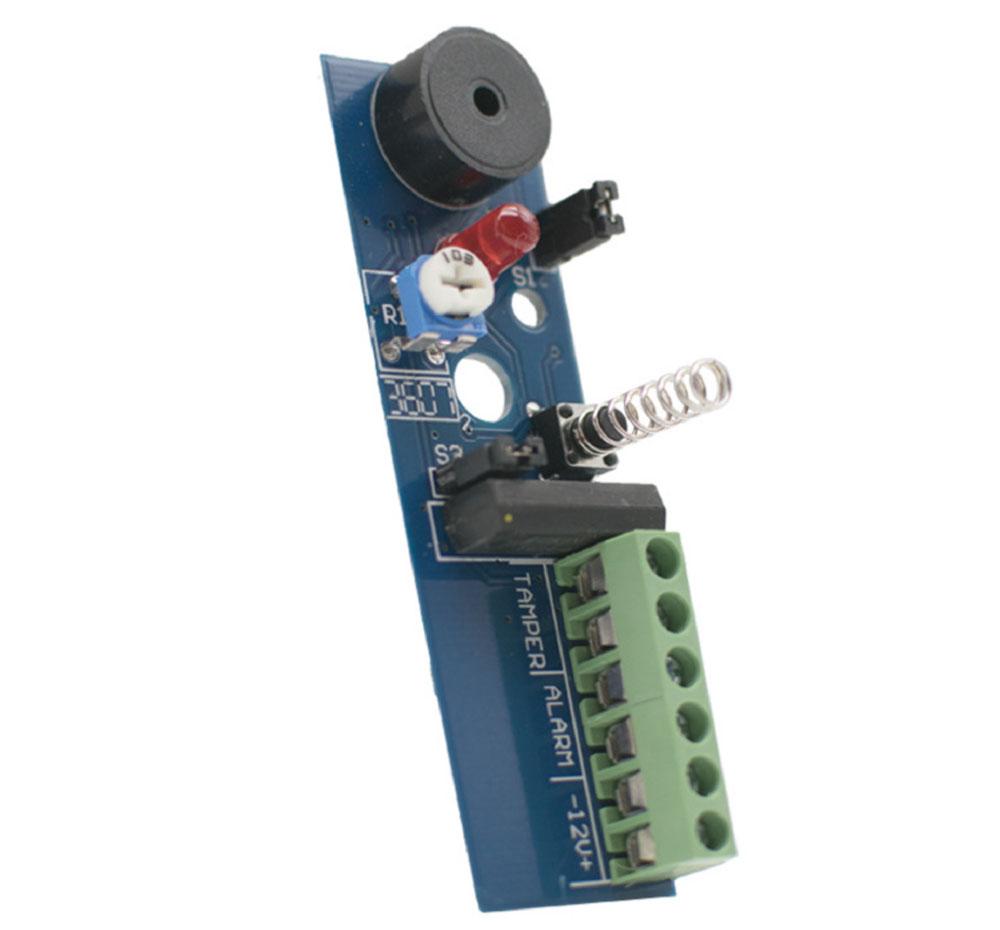

- Using piezoelectric vibration sensor
- Applicable to a variety of environments, especially in the installation of steel, glass, sheet and other vibration
- Transmission coefficient of the larger surface
- Sensitivity adjustable
- Vibration cumulative alarm effect
- Low power consumption

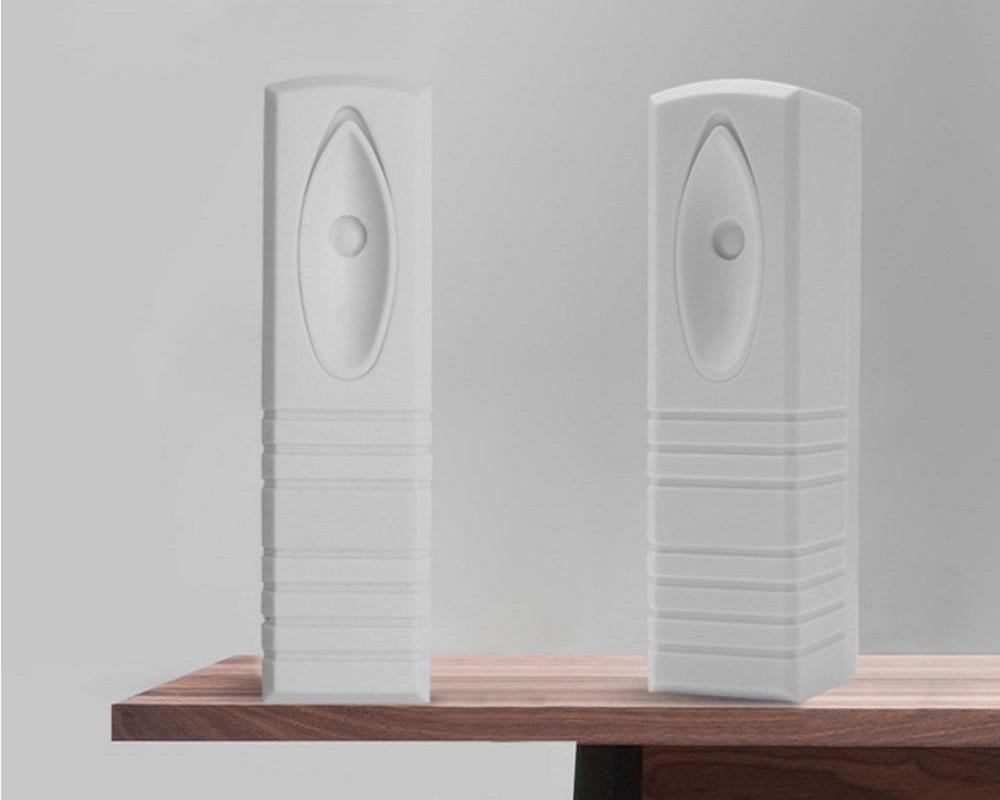

- Small size, stable performance, easy installation
Technical Indicators
| Working voltage | DC 9 ~16V (recommended 12VDC) |
| Working current | <20mA @ 12VDC |
| Detection mode | Acoustic induction |
| Working temperature | -10 ℃ ~ 55 ℃ |
| Relative humidity | ≦ 90% RH |

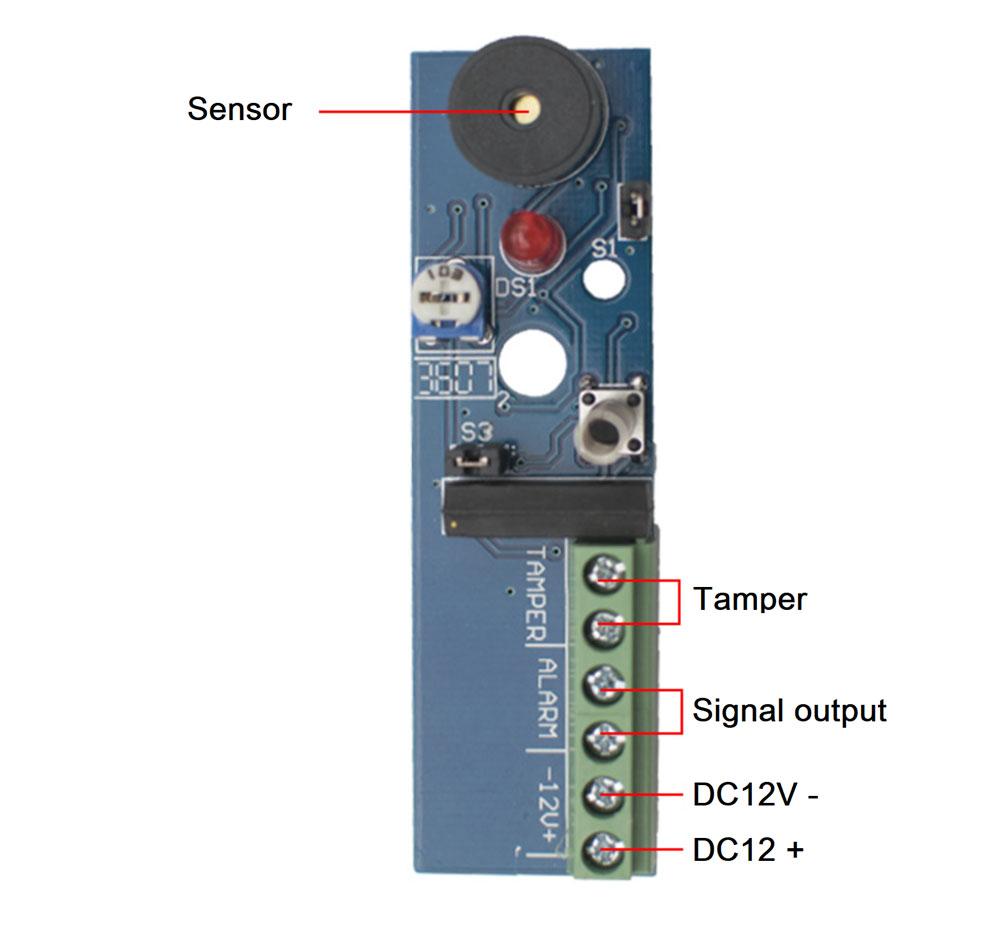

| Alarm output | NC normally closed contact |
| Contact Load | 100VDC / 500mA / 10VA (W) MAX |
| Dimension | 85 x 26 x 32mm |

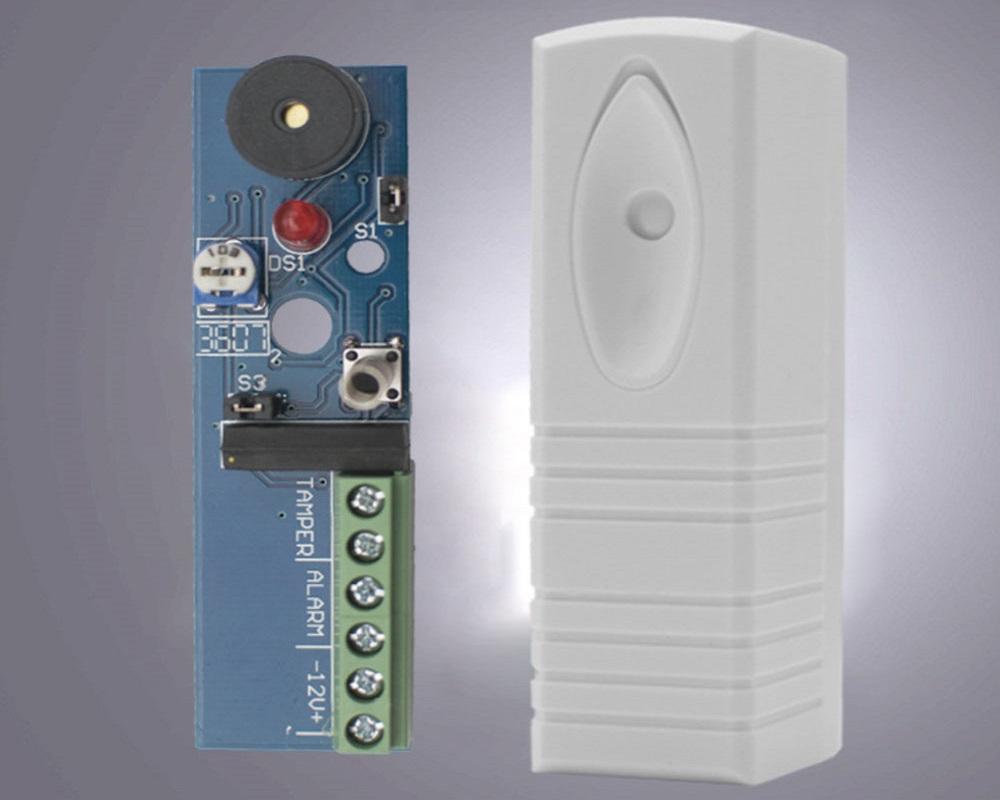

Product Details
