GSM/4G WiFi Alarm System

Type: AS-6000, AS-60004G

→ GET QUOTATION

Related: Smart Home

Commercial Dual-Network Intrusion Alarm System for Smart Security Projects

The Athenalarm AS-6000 Series is a commercial-grade GSM/4G WiFi alarm system built for distributors, importers, security solution providers, and OEM partners who need a reliable, app-enabled security platform for residential and light-commercial markets worldwide.

1. Product Overview

1.1 What Is the AS-6000 Series GSM/4G WiFi alarm system?

The Athenalarm AS-6000 Series GSM/4G WiFi alarm system is a wireless intrusion alarm platform that combines Wi-Fi networking with GSM or 4G LTE cellular communication for dependable alarm reporting and remote management. Built on a 32-bit ARM Cortex-M3 processor and the uCOS-III real-time operating system, the system supports up to 100 wireless accessories, integrates with the Tuya Smart ecosystem, and is designed for scalable deployment rather than single-household use.

Unlike consumer-grade wireless alarm kits, the AS-6000 Series GSM/4G WiFi alarm system is engineered around commercial deployment requirements: multi-channel alarm reporting, regional cellular module options, multilingual operation, and full OEM/private-label support for international distribution.

1.2 Who Is This System For?

• Security Equipment Importers
• Regional Distributors & Wholesalers
• System Integrators
• Smart Home Solution Providers
• OEM & Private-Label Security Brands

2. Key Procurement Advantages

• Dual-network communication — Wi-Fi with GSM/4G backup
• 32-bit ARM Cortex-M3 platform running uCOS-III RTOS
• Compatible with Tuya Smart and Smart Life mobile apps
• Supports up to 100 wireless accessories (433.92 MHz, EV1527 protocol)
• Regional LTE module options for Europe and South America

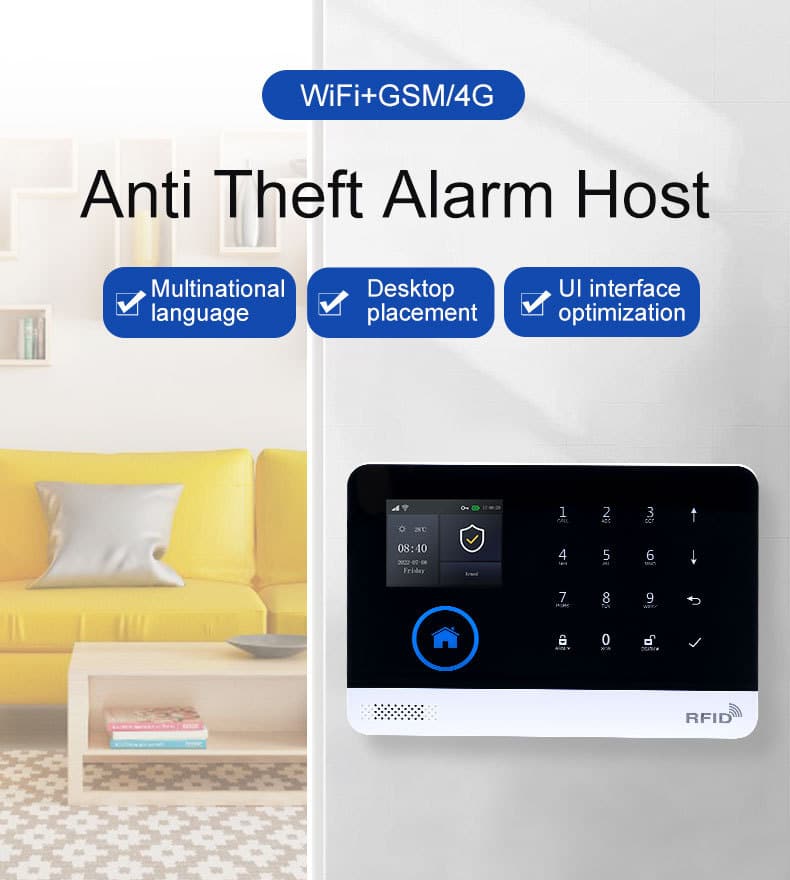

• Eight built-in system languages for international distribution
• OEM and private-label manufacturing support
• Standard turnkey kit ready for distribution and project deployment

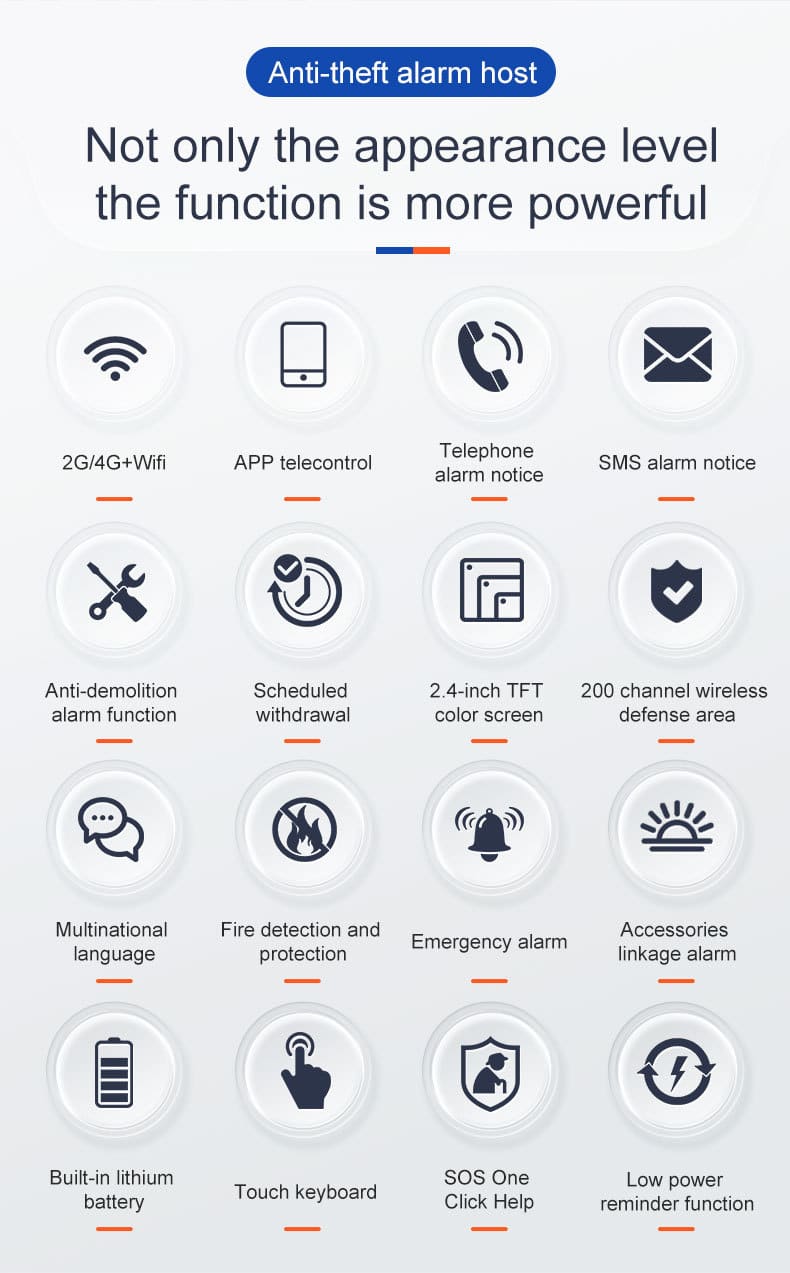

3. Features & Benefits

3.1 High-Performance, Stable Hardware Platform

At the core of the system is a 32-bit ARM Cortex-M3 processor running the uCOS-III real-time operating system, managing wireless communication, alarm processing, mobile connectivity, and event logging simultaneously. Compared with entry-level alarm controllers built on lower-performance MCUs, this architecture is designed to deliver consistent performance during continuous operation — helping distributors reduce after-sales maintenance and warranty costs over the product lifecycle.

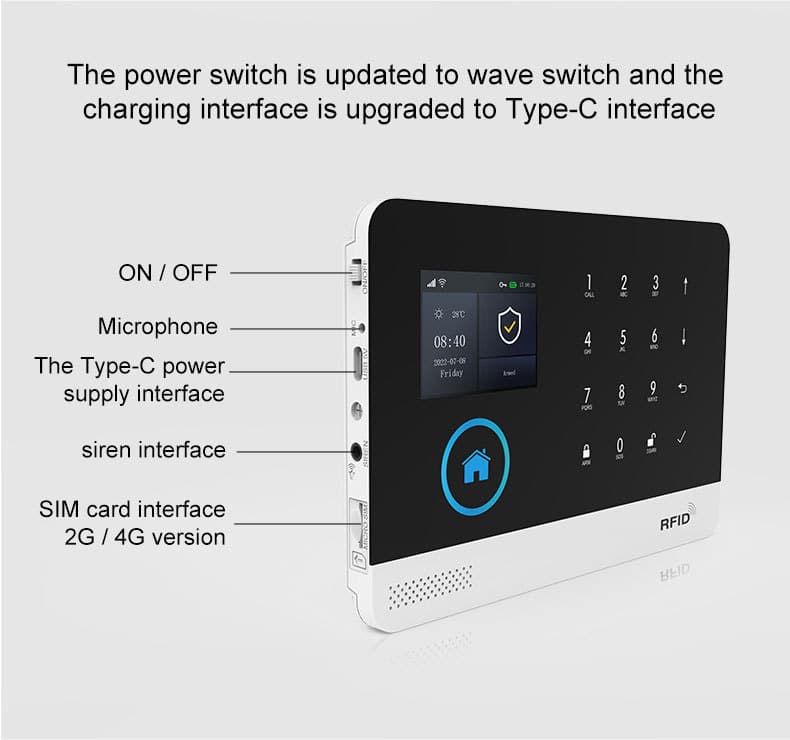

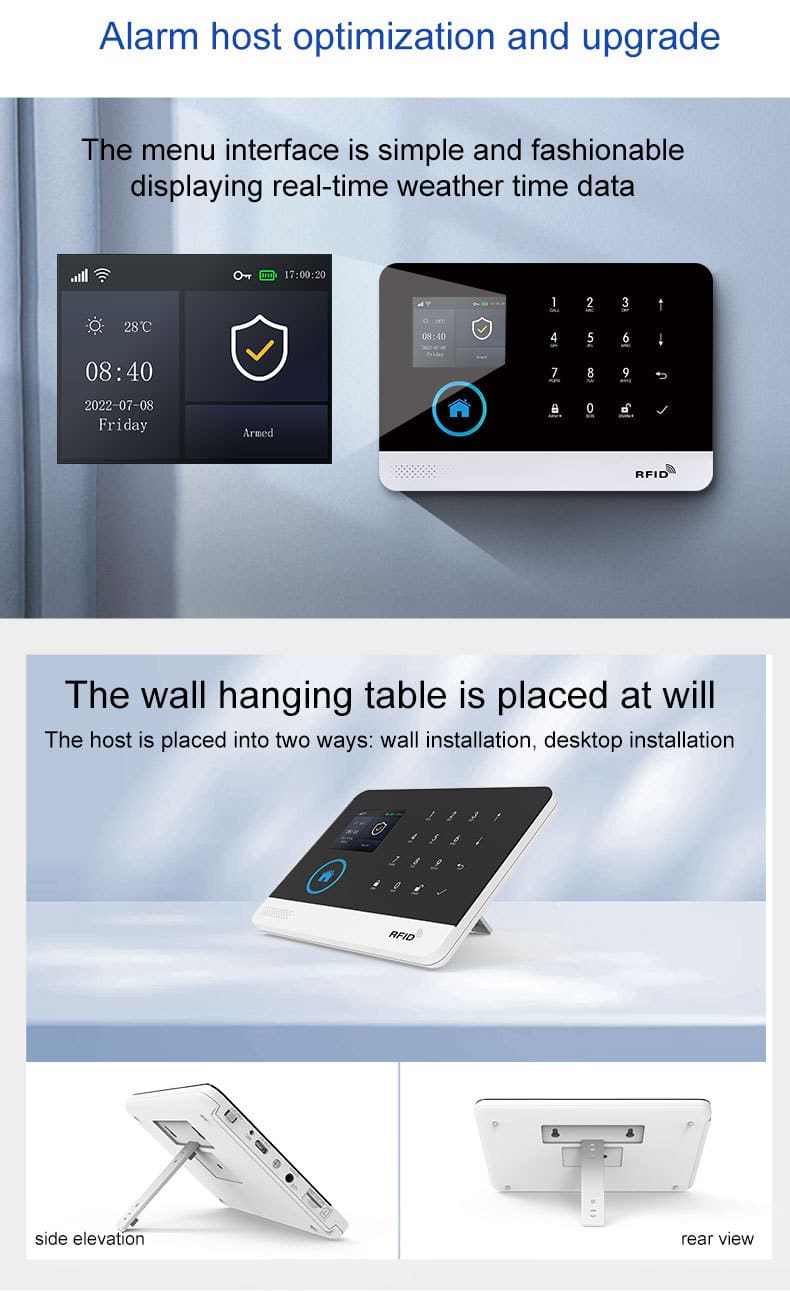

A 2.4-inch TFT color display simplifies on-site configuration and lets users view operating status, alarm events, and settings clearly.

Additional hardware features:

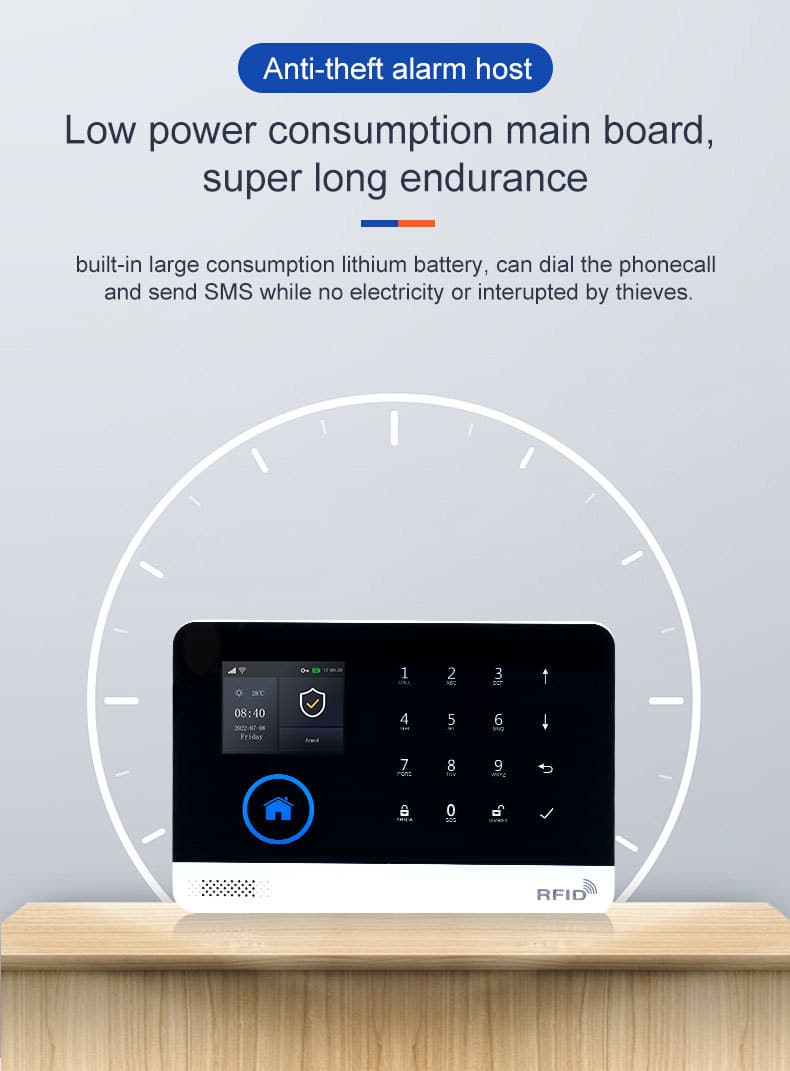

• Built-in rechargeable lithium backup battery
• Low standby power consumption
• Compact wall-mounted enclosure
• Wired siren output
• Micro USB power interface

3.2 Reliable Dual-Network Communication

The system combines Wi-Fi connectivity with GSM or 4G LTE cellular communication, so alarm messages can still be delivered through an alternative path if one network becomes unavailable. Depending on the model, supported channels include:

• Wi-Fi (IEEE 802.11 b/g/n)
• Quad-band GSM
• Regional 4G LTE modules
• Mobile app push notifications, SMS alerts, and voice call notifications
• Intranet alarm center reporting

3.3 Regional LTE Options for International Procurement

Different countries operate on different cellular bands; selecting an incompatible module can delay deployment and increase procurement risk. The AS-60004G is available with two regional LTE configurations:

Note: Both variants share Bands B1, B3, B5, B7, and B8. The recommended variant depends on the local carrier’s LTE bands — please confirm compatibility before ordering, or contact our team for a recommendation based on your destination country.

3.4 Expandable Wireless Architecture

The control panel supports up to 100 wireless learning locations, using the 433.92 MHz EV1527 protocol, allowing distributors and installers to size solutions for projects of any scale without changing the core platform. (See Section 5 for the full list of compatible accessories.)

3.5 Intelligent Zone Management

Different scenarios require different alarm behavior. Wireless devices can be assigned to the following zone types, each with its own protection logic:

Entry/Exit, Perimeter, Indoor, 24-Hour, SOS, Gate, Bedroom, Window, Balcony, Smoke Detection, Gas Detection, Carbon Monoxide Detection, Water Leakage Detection.

For example, smoke, gas, carbon monoxide, and water leakage sensors can be configured as 24-hour zones, so alarms trigger even while the burglary protection mode is disarmed.

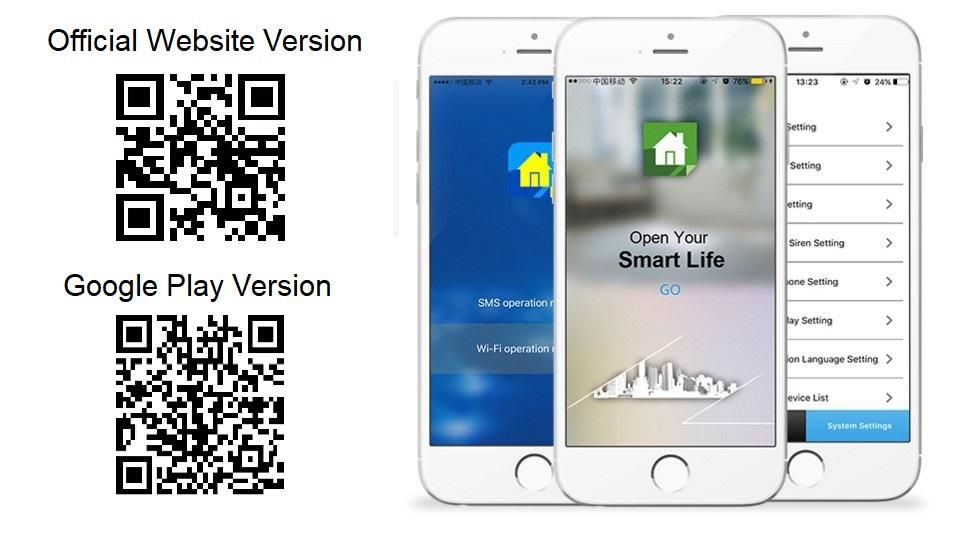

3.6 Smart Mobile App Management

Integration with Tuya Smart and Smart Life lets installers and end users manage the system via widely adopted mobile apps — without any proprietary software development. Remote functions include:

• Arm / disarm the system
• Configure system parameters
• Manage wireless accessories
• Receive real-time alarm notifications
• View operating records and monitor system status

Because Tuya is adopted globally in smart home markets, distributors can offer a familiar user experience immediately, shortening deployment time.

3.7 Multi-Channel Alarm Reporting

When an alarm triggers, the system supports:

• Mobile app push notification
• SMS message
• Voice call
• Intranet alarm center reporting

The panel supports five programmable telephone numbers, with SMS and voice-call preferences configurable independently — suitable for both standalone installations and centrally managed deployments.

3.8 System Self-Monitoring & Protection

The panel continuously monitors its own operating condition and reports key events, including:

• Main power failure
• Backup battery low voltage
• Panel tamper alarm
• Alarm activation records and user operation logs

4. AS-6000 Series GSM/4G WiFi alarm system vs. Typical Consumer Alarm Kits

For distributors and importers, these differences translate into improved deployment flexibility, reduced compatibility concerns, and broader coverage across multiple customer segments.

5. Compatible Wireless Accessories

All accessories operate on the 433.92 MHz frequency using the EV1527 encoding protocol.

Note: Compatibility depends on matching wireless frequency and encoding protocol. Buyers should verify third-party accessory specifications before integration.

This shared platform allows distributors to expand product portfolios and simplify inventory management, since a single accessory line covers residential, retail, and light-commercial projects alike.

6. Model Selection & Ordering Guide

6.1 Model Comparison

6.2 How to Choose the Right Model

• Choose AS-6000 if your target market still supports GSM networks and does not require 4G LTE connectivity.
• Choose AS-60004G if your market has phased out 2G services or requires LTE for long-term deployment.
• Select the regional LTE variant according to the frequency bands used by local network operators.

If you are uncertain which version fits your market, Athenalarm can recommend a suitable configuration based on your destination country and deployment requirements.

6.3 Procurement Recommendation

Before placing bulk orders, confirm local cellular frequency compatibility and applicable telecommunications regulations within the destination market.

7. Typical Applications

7.1 Residential Security

Suitable for villas, apartments, townhouses, and gated communities. Mobile management through the Tuya platform lets homeowners receive alarm notifications, manage users, and control the system remotely without dedicated monitoring equipment.

7.2 Retail & Chain Store Protection

With wireless accessories, scheduled arming/disarming, and multiple alarm reporting methods, the system suits convenience stores, supermarkets, pharmacies, restaurants, jewelry shops, and specialty retail locations that need rapid notification and simple daily operation.

Retail Chain Security Deployment Case Study

Project Scenario

A retail chain with 40 stores required a scalable intrusion protection solution with reliable alarm communication, remote management capability, and simplified installation across multiple locations.

Solution Configuration

• Athenalarm AS-60004G 4G WiFi Alarm System control panels
• Wireless PIR motion detectors
• Wireless door/window contacts
• Wireless sirens
• Tuya Smart mobile management platform

Deployment Requirements

The project required:

• Independent security protection for each retail location
• Reliable alarm notification even when local network conditions change
• Remote management for store operators and security teams
• Fast installation without extensive wiring work

Deployment Benefits

• LTE Backup Communication
  The AS-60004G provides cellular communication backup, helping maintain alarm reporting capability when Wi-Fi connectivity is unavailable or unstable.
• Centralized Remote Management
  Store managers and security personnel can remotely arm/disarm systems, receive alarm notifications, and monitor system status through mobile applications.
• Reduced Installation Complexity
  Wireless accessories reduce the need for additional cabling, making deployment faster and more practical for existing retail locations.
• Scalable Multi-Site Deployment
  The standardized alarm platform allows the same security architecture to be deployed across multiple stores while simplifying maintenance and product management.

7.3 Offices & Commercial Buildings

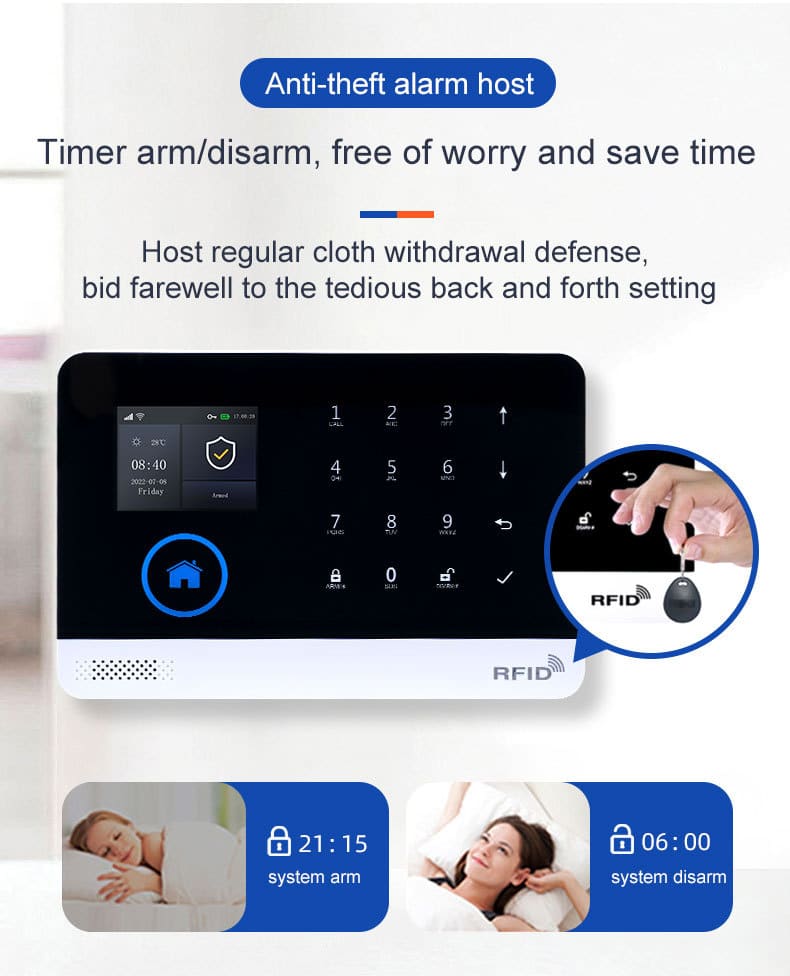

Programmable schedules, multiple user access methods (RFID, remote control), and remote management make the system suitable for small and medium-sized offices that need intrusion protection after hours while keeping daytime access simple.

7.4 Warehouses & Storage Facilities

By combining wireless door contacts, motion detectors, smoke detectors, and water leakage sensors, the system provides perimeter protection plus environmental monitoring to help protect inventory and deliver timely alerts for abnormal events.

7.5 Security Distribution & System Integration Programs

For distributors, wholesalers, and OEM partners, the AS-6000 Series GSM/4G WiFi alarm system offers a standardized platform with multilingual operation, regional communication options, and flexible branding — allowing a single hardware architecture to serve multiple markets instead of managing separate product lines per region. Flexible zone configuration and intranet alarm center reporting also make it suitable for system integrators building complete security solutions.

7.6 Additional Deployment Environments

The system is also deployed in apartments, educational facilities, healthcare clinics, and light industrial premises — anywhere wireless installation and dual-network communication redundancy are preferred over extensive wiring.

8. Technical Specifications

The following specifications reflect current verified product information for the AS-6000 and AS-60004G Series.

8.1 Hardware & Operating Parameters

8.2 Communication Specifications

8.3 System Capacity

8.4 Regional Deployment Notice

Communication modules should be selected according to the destination country’s mobile network infrastructure. Before importing or deploying, buyers should verify:

• Local GSM or LTE frequency compatibility
• Telecommunications regulations
• Import approval requirements
• Regional certification requirements where applicable

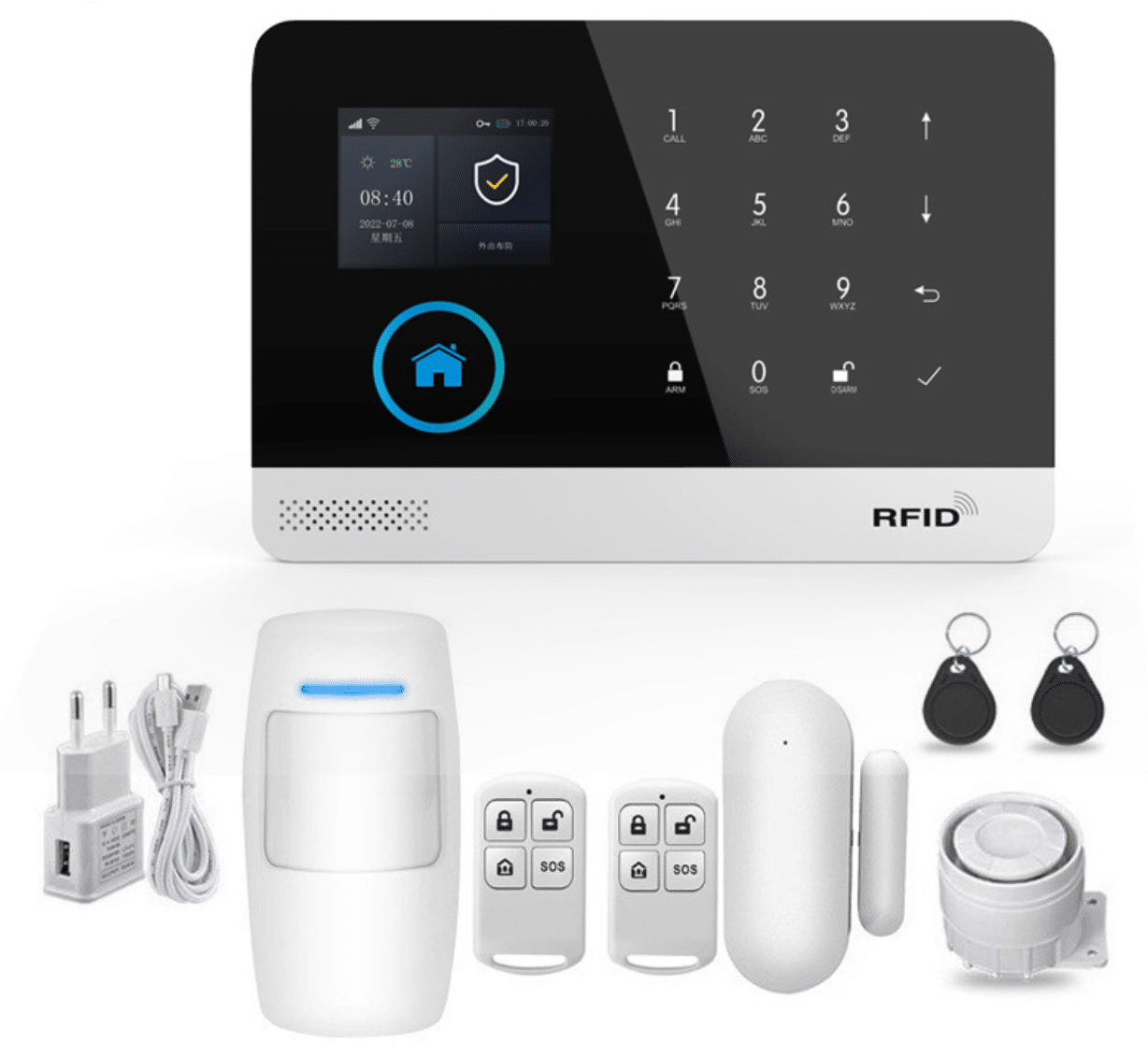

9. Standard Package Contents

The standard package provides a practical starting point for installers, with additional wireless accessories available as project requirements expand.

10. OEM & Private Label Services

10.1 Customization Options

For companies building their own security brands, the AS-6000 Series GSM/4G WiFi alarm system supports:

• Product logo printing
• Customized packaging
• User manual customization
• Regional communication module selection
• Language configuration
• Accessory bundle customization

Additional customization requests may be evaluated according to project requirements.

10.2 OEM Order Information

Lead times are based on current verified information; actual schedules may vary by order quantity and customization requirements.

11. Frequently Asked Questions

11.1 What is the difference between the AS-6000 and the AS-60004G?
Both share the same hardware, software, wireless capacity, and Tuya Smart integration. The difference is the cellular module: AS-6000 uses Wi-Fi + Quad-band GSM (850/900/1800/1900 MHz), while AS-60004G uses Wi-Fi + a regional 4G LTE module. Choose AS-6000 where 2G remains available, and AS-60004G for markets that have migrated to LTE.

11.2 Which 4G LTE version should I choose?
Variant A (Europe: B1/B3/B5/B7/B8/B20) or Variant B (South America: B1/B2/B3/B4/B5/B7/B8/B28/B66). If unsure, our sales team can recommend a configuration based on your destination country.

11.3 How many wireless accessories can be connected?
Up to 100 wireless learning locations, including detectors, remote controls, RFID cards, and other compatible accessories — enough headroom for expansion without replacing the main panel.

11.4 Which wireless devices are compatible?
Any accessory operating at 433.92 MHz with EV1527 encoding, including PIR detectors, door/window contacts, remote controls, RFID cards, smoke/gas/CO detectors, water leakage detectors, and wireless sirens. Always confirm frequency and protocol compatibility before integrating third-party devices.

11.5 Does the system support remote management?
Yes — via Tuya Smart and Smart Life, users can arm/disarm remotely, receive real-time alarm notifications, configure parameters, manage accessories, and review operating records.

11.6 Which alarm notification methods are available?
Mobile app push notifications, SMS messages, voice calls, and intranet alarm center reporting, depending on the selected configuration and network environment.

11.7 Is OEM or private-label manufacturing available?
Yes, including logo printing, custom packaging, manual customization, regional module selection, language configuration, and accessory bundle customization.

11.8 What is the minimum order quantity for OEM orders?
200 units for custom logo branding. Contact our sales team for other customization requirements.

11.9 What is the standard production lead time?
Approximately 10 days, though actual schedules may vary by quantity and customization needs.

11.10 Can I request samples before placing a bulk order?
Yes, samples are available for evaluation, compatibility testing, and project verification. Contact our sales team to arrange availability and shipping.

11.11 What technical documentation is available?
Product Datasheet, Installation Manual, User Manual, and Product Brochure. Additional documentation may be provided to qualified distributors and project partners.

11.12 What warranty is provided?
A 1-year limited warranty covering manufacturing defects under normal use. Contact our sales team for OEM, distributor, or region-specific warranty terms.

11.13 Is technical support available?
Yes — covering product selection, model configuration, deployment guidance, and OEM project discussion.

11.14 What information should be confirmed before placing an international order?
Destination country, GSM/LTE network requirements, required communication module, power adapter specification, language requirements, OEM customization needs, quantity/delivery schedule, and local import regulations where applicable. Confirming these details in advance reduces procurement risk and shortens implementation time.

12. Why Work with Athenalarm?

Choosing a supplier is not only about specifications — it’s about selecting a manufacturing partner that can support your business long-term. Athenalarm focuses on practical security products for international distributors, importers, wholesalers, and system integrators, backed by clear technical documentation, flexible customization, and responsive pre-sales communication to simplify procurement and deployment.

13. Request a Quotation

Interested in evaluating the AS-6000 Series GSM/4G WiFi alarm system for your next project or product portfolio? Our team can assist with:

• Product Evaluation — specifications, model selection, module recommendations, accessory compatibility
• OEM & Private Label Services — logo customization, regional configuration
• Commercial Cooperation — distributor opportunities, wholesale pricing, sample orders, volume purchasing, project support

By understanding your target market, communication requirements, and business objectives, we can recommend the most appropriate AS-6000 Series GSM/4G WiFi alarm system configuration and provide the documentation needed for your evaluation.

→ Request a Quotation

Procurement Note: To ensure successful deployment, confirm local telecommunications requirements, wireless frequency compatibility, and applicable import/certification regulations before placing bulk orders. Athenalarm’s sales and engineering teams are available throughout your evaluation and procurement process.

14. Download Product Documentation

Access complete technical documents and guides for the Athenalarm AS-6000 Series GSM/4G WIFI Alarm System.

• Download: Athenalarm AS-6000 Series GSM/4G WIFI Alarm System User Manual (PDF)
